①Higher output, bigger crushing ratio, lower power consumption and large feeding size

   The Symmetrical design of the deep-cavity crushing chamber can maximizes the feeding size, output and crushing ratio. The combination of the operating speed and the operation structure can achieve the bigger production while lowering the wear-resistance. The ideal crushing angel can guarantee the materials to pass through the chamber smoothly in order to make the crushing ratio become bigger.

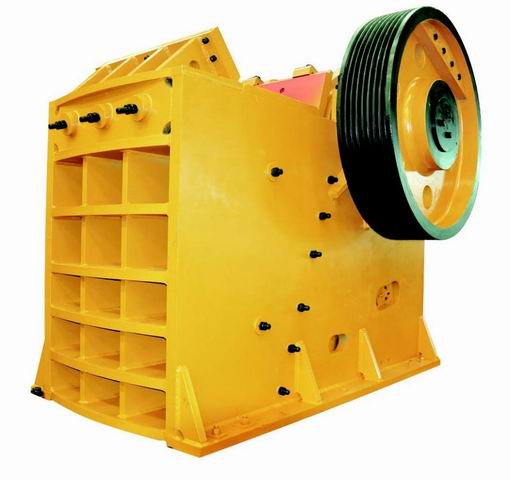

② Reliable heavy-duty moving jaw assembly

It is made of high quality cast steel and is driven by large casting pulleys and flywheels. Forged heavy-duty eccentric shafts and high-quality large spherical roller bearings with SKF or FAG give the crusher exceptional reliability. The movable head is equipped with a replaceable guard plate to effectively protect the moving jaw from the impact of the feeding stroke, the equipment has higher crushing efficiency under the same energy consumption.

③No anchor-bolt installation method

The better balance can help the crusher to avoid the installation method of the anchor-bolt. The vibration-decreasing block made of rubber, which is installed in the bottom and side of the crusher support can realize the normal production of the crusher, while decreasing the impact of the vibration and helping to avoid the damage of the foundation.

m Integrated motor installation

  The motor bearing and the crusher are installed together, which reduces the installation space of the crusher and the length of the V-belt, making the foundation simple, the service life of the V-belt is longer, and the standard pulley cover and flywheel cover can be configured at the same time.

⑤ Strong body structure

  The body frame is composed of fixed jaw, steel plates and adjustment seats, and the joint part adopts the butt-weld to improve the stresses of the steel plates. After the rack is welded, the whole annealing is performed to make the frame strong, durable and simple in structure.

⑥Hydraulic discharge adjustment system

The hydraulic discharging adjustment system is much easier and safer by comparing with the gasket adjustment system.

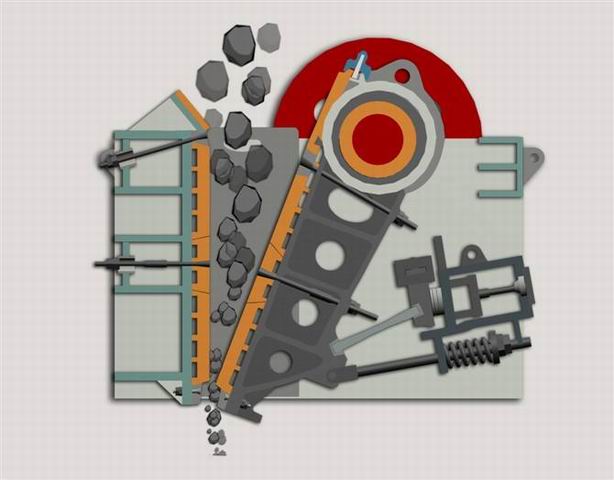

⑦Symmetrical crushing chamber

The angle is between 18-22 and the symmetrical crushing chamber can realize the mutual replacement of movable jaws and fixed jaws because the two are the same.
